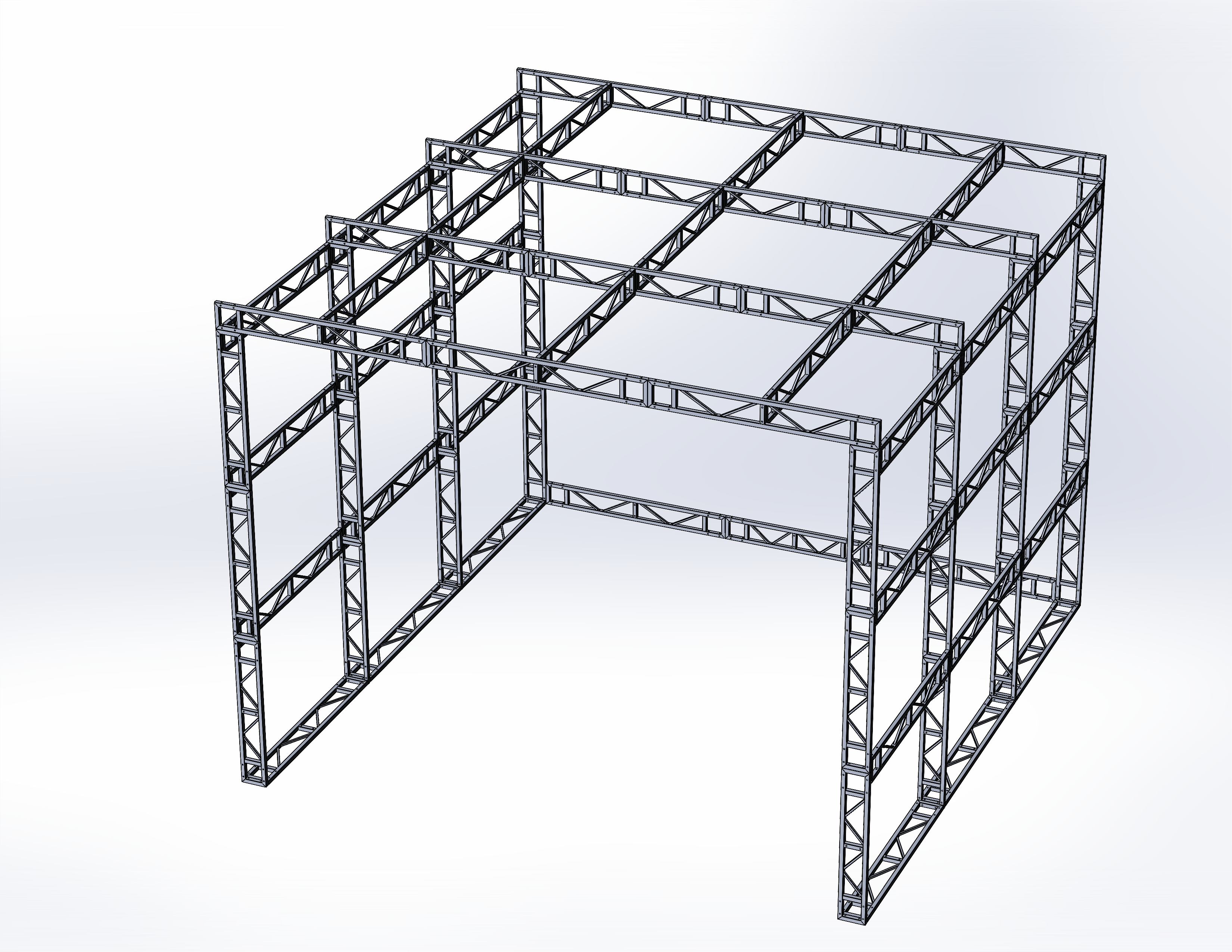

Mechanical Design Overview

Studio Specifications

• Dimensions: 6m x 6m x 4.5m – compact and modular.
• Exterior: Blackout fabric for full light control.
• Interior: Matte, non-reflective green screen fabric; comes with two interchangeable backdrops.
• Antilatency Tracking System: Custom vertical pillars with IR markers are mounted on the trusses.
• Lighting: Kit of lightweight light fixtures mounted on the trusses.
• Optional Add-on: Front-facing camera rail system.

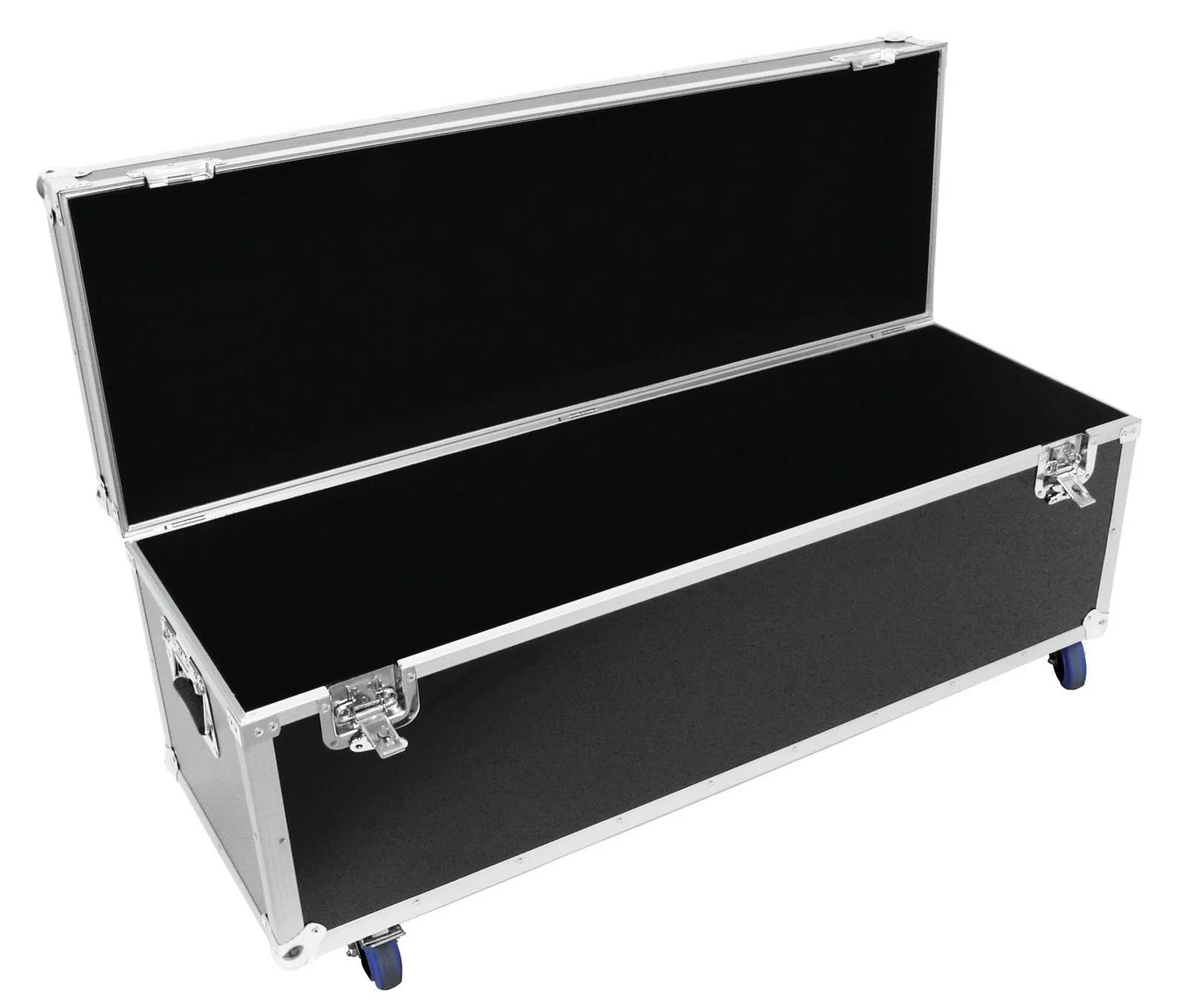

• The studio packs into transportation cases and is delivered ready-to-assemble to the customer.

Exhibition Advantages

• In addition to being a modular VP studio, the solution also serves as a fully equipped exhibition booth—ideal for trade shows and industry events.
• The studio’s 6 × 6 × 4.5 m footprint fits perfectly within standard exhibition booth sizes, making it easy to deploy at most venues.
• Enables a complete, real-time demonstration of the virtual production workflow in just 20 minutes.
• Visitors experience the entire process—from setup to final composited output—in a compact, interactive, and visually engaging format.
